USB Scrolling RDS Encoder module Ver.2

NOT FOR SALE IN THE UK

NEW VERSION FOR 2022

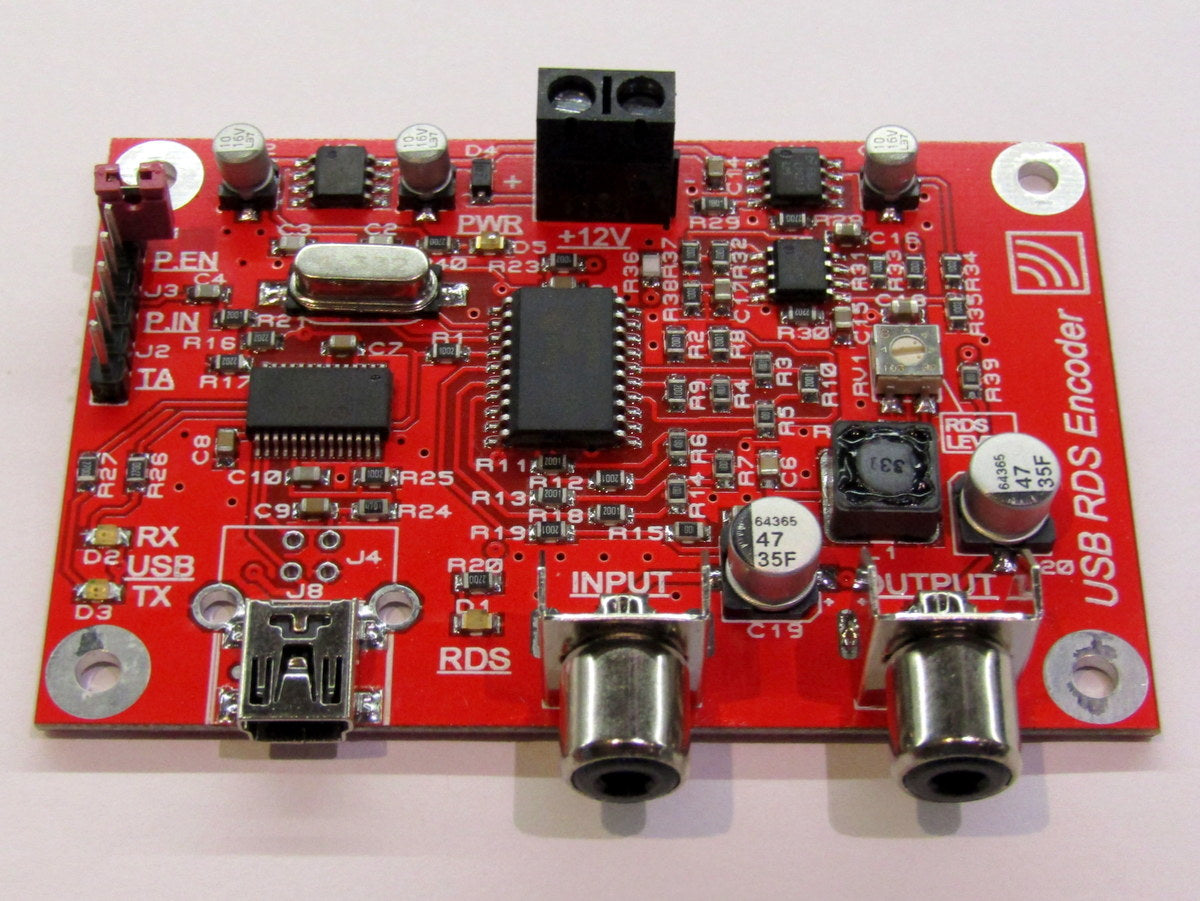

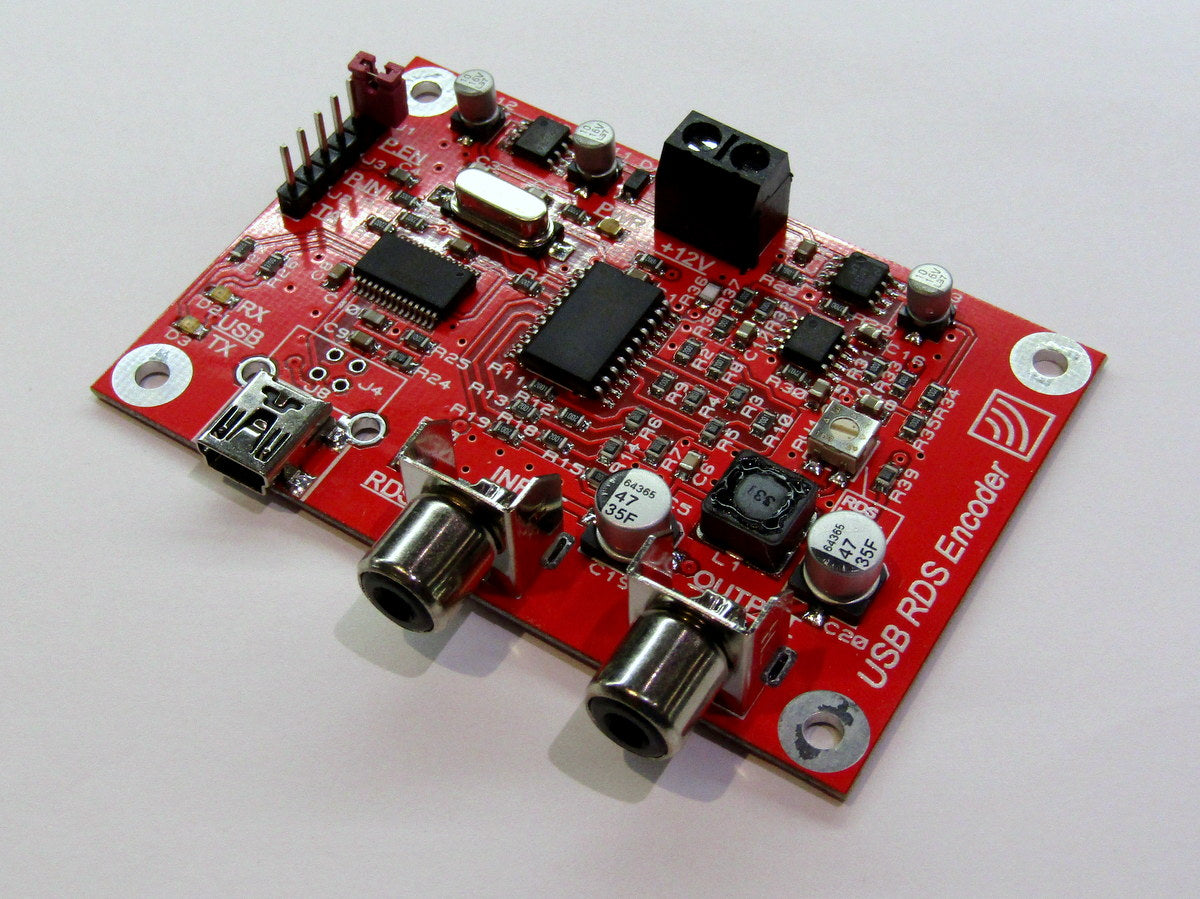

A truly plug-and-play low cost RDS encoder for FM transmitter projects, either professional or amateur. Simply provide a 12V supply and a PC and you can be broadcasting with the latest scrolling RDS in minutes, all programmable with a USB connection! After prgramming your RDS data, use it in standalone mode then to re-prgram just plug back in to the USB.

The Engima RDS encoder V2 has the following superb features:

-Version 2 features improved audio quality and a Mini USB* connector

- Audio pass-through (simply connect in-line with your transmitters audio input)

- Non volatile memory when used in standalone mode

- Full featured RDS encoder supporting PI, PS, PTY, TP, AF, TA, DI, M/S, Radiotext, UDG (2)

- Scrolling RDS up to 80 characters (4 modes) & Radiotext up to 64 characters

- Pilot lock to stereo encoder

- External TA (traffic program flag) trigger via on-board jumper

- Simple USB installation and programming via PC software

- Compact, high quality PCB with on-board USB and audio connections

- Available without audio connections (by request), to connect inside your existing transmitter

Technical Specifications:

- Power supply required 12-16V DC regulated @50mA

- Max. audio input level 2V RMS, (2.8V pk-pk), unbalanced

- RDS level, adjustable 0-10% (0-200mV RMS)

- On-board jumpers/ connectors for TA flag, Pilot lock and Pilot lock input

- RDS signal conforms to professional CENELEC standard

- Dimensions 75 x 50 x 15mm (PCB), 75 x 60 x 15mm (with connectors), weight 30g

Please see the Quick Start Guide, Software and Full user manual above.

* Note: The current batch of boards will be fitted with either a full size USB type B socket or a mini USB socket. The functionality is unchanged. If you would prefer either connector, please specify with your order.
