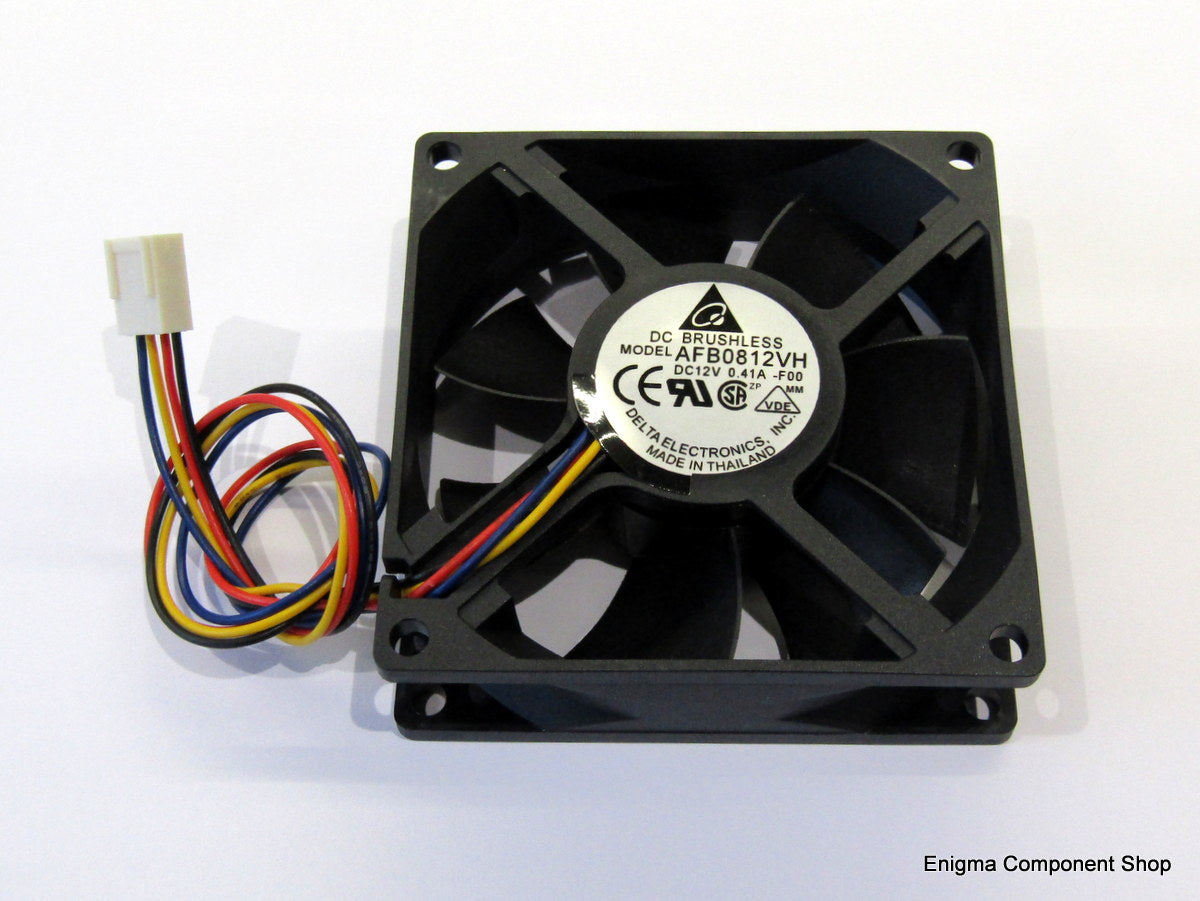

Delta AFB0812VH High Speed 80mm 12V Fan (4 Wire)

Quality fan by Delta electronics, part number AFB0812VH-F00.

This is the 4-wire type, with red & black power supply wires, plus a yellow tachometer wire and blue PWM control wire. The blue & yellow wires can be left disconnected, if not required.

Suitable for cooling RF or audio amplifiers or any project requiring a good airflow.

Specs:

• Dual ball bearings for long life
• High output 42CFM airflow
• Sound level 38dBA
• 12V supply @0.41A
• 3600 RPM
• Size 80 x 80 x 25mm

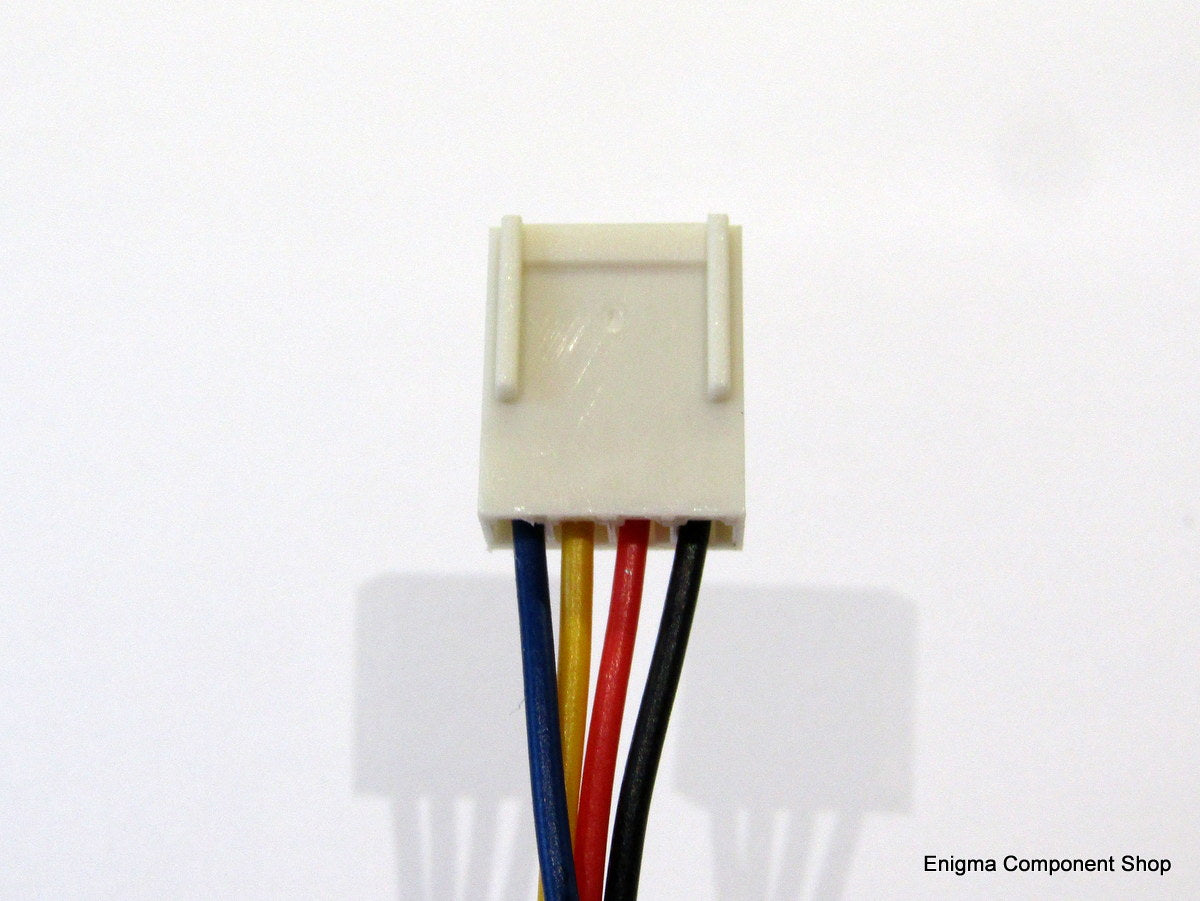

• 30cm flying leads with 4-pin plug on the end.
