Dual Output 120W Switching Power Supply 24V 4A & 12V 1A
In Stock: 20
High Quality Components
Great quaility components at great prices.
Orders dispatched daily, within 24 hours of orders placed.

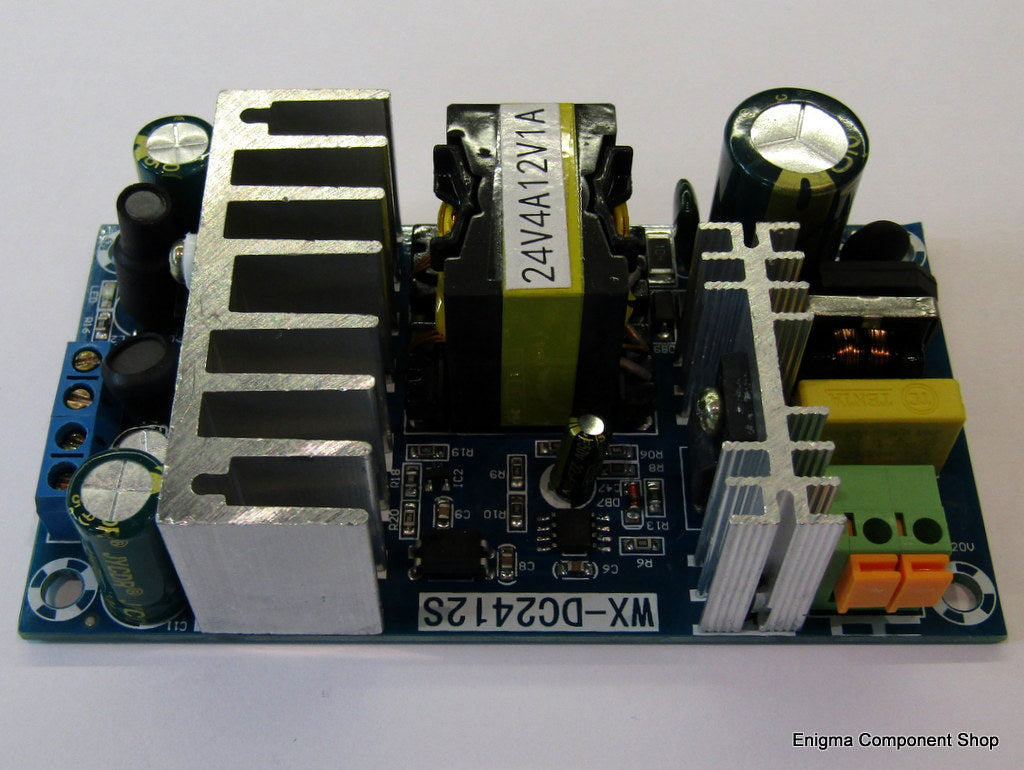

Low cost dual-output switching power supply module, with universal 90-265V AC input and two outputs, 24V at 4A and 12V at 1A with up to 95% efficiency.
AC Input via push-on connectors and outpput via screw terminals.
Size 106mm (L) x 57mm (W) x 30mm (H).
Four mounting holes (M4) at 98 x 47mm
We suggest some light forced cooling/ airflow over the module at high loads.
Please note: This module carries very high voltages and only experienced users with knowledge of mains safety should attempt installation. In addition, a clearance of at least 6mm should be given under the board when fitting in to a case. We also recommend an insulating sheet under the board when used in metal enclosures. It is the users' responsibility for mains safety and Enigma Shop cannot be held responsible for injury as a result of improper installation of this product.
