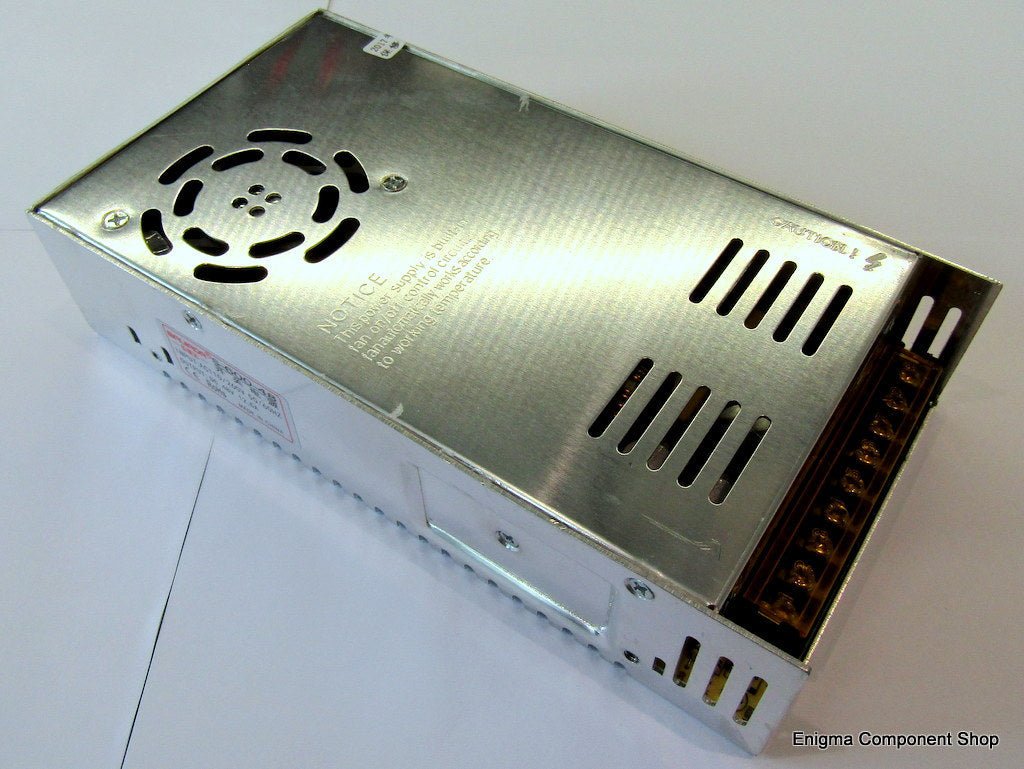

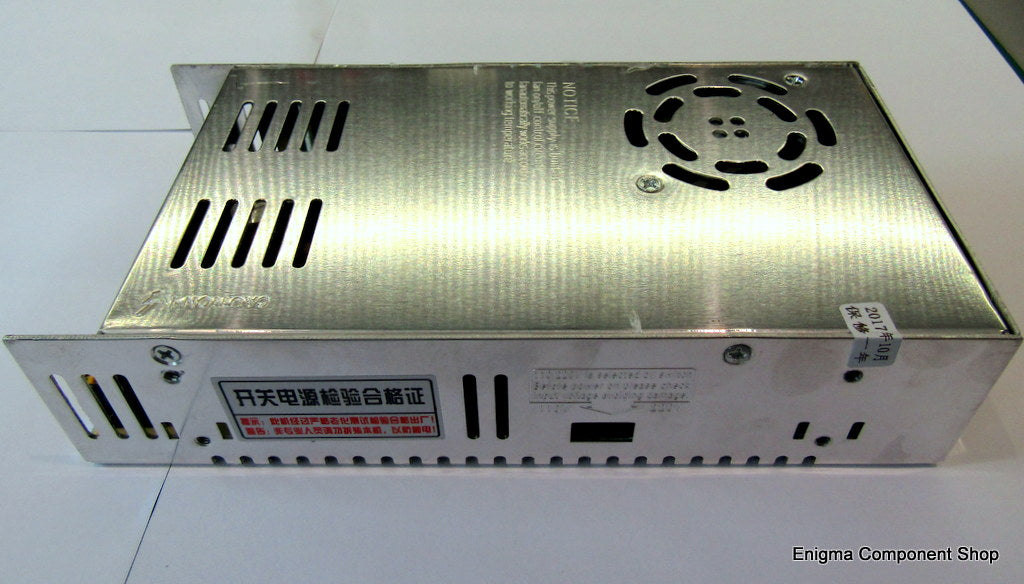

Low Cost Single Output 500W 36V Power Supply

A low-cost, compact power supply for led or radio projects. Suitable to power RF amplifiers requiring 28V and above.

AC Input selectable 110-220V

Output 36V at 500W, max. 13.8A.

Continuous fan cooling of case.

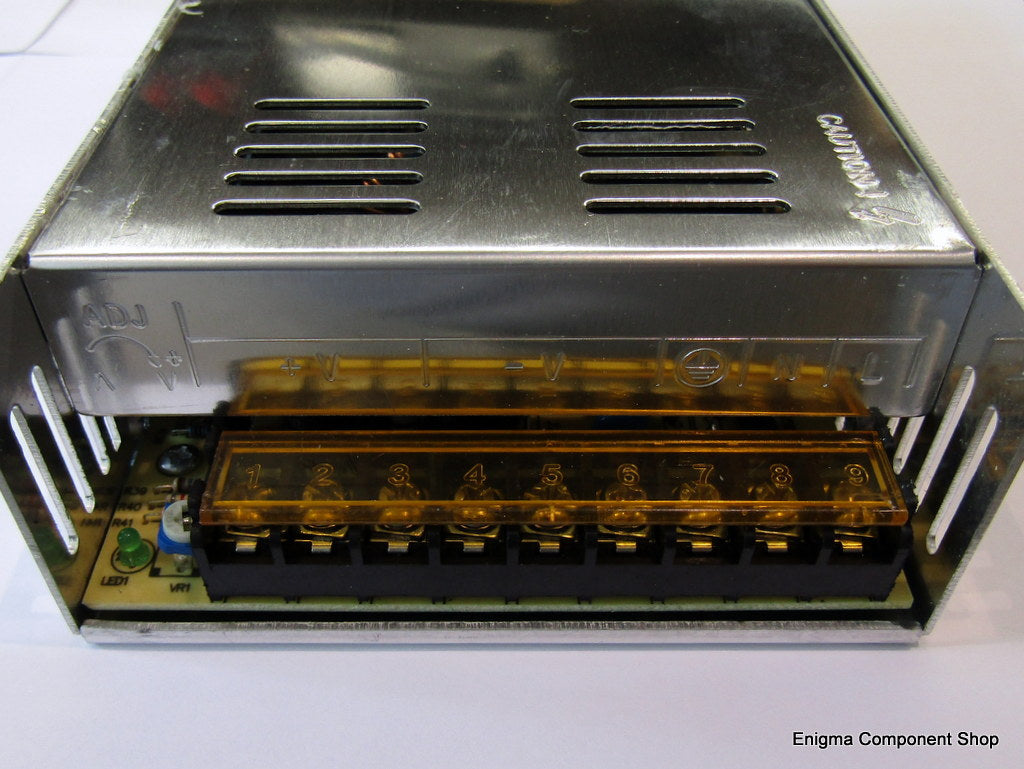

Input and output connections via screw terminals on one end.

Voltage adjustment pot 36V +/-10%

Dimensions 251 (L) x 115 (W) x 50 (H).

Mounting holes (M3) 150 x 50mm (4 on underside), plus 150 x 25mm (4 on long side).

Weight 930g.

For extended life and reliability, we recommend running this power supply at 85% load or less (11.5A).

When using with RF amplifiers we recommend passing the  output cables through a ferrite core (at least 2 turns). This will stop RF feedback in to the supply which could stop proper output voltage regulation.
