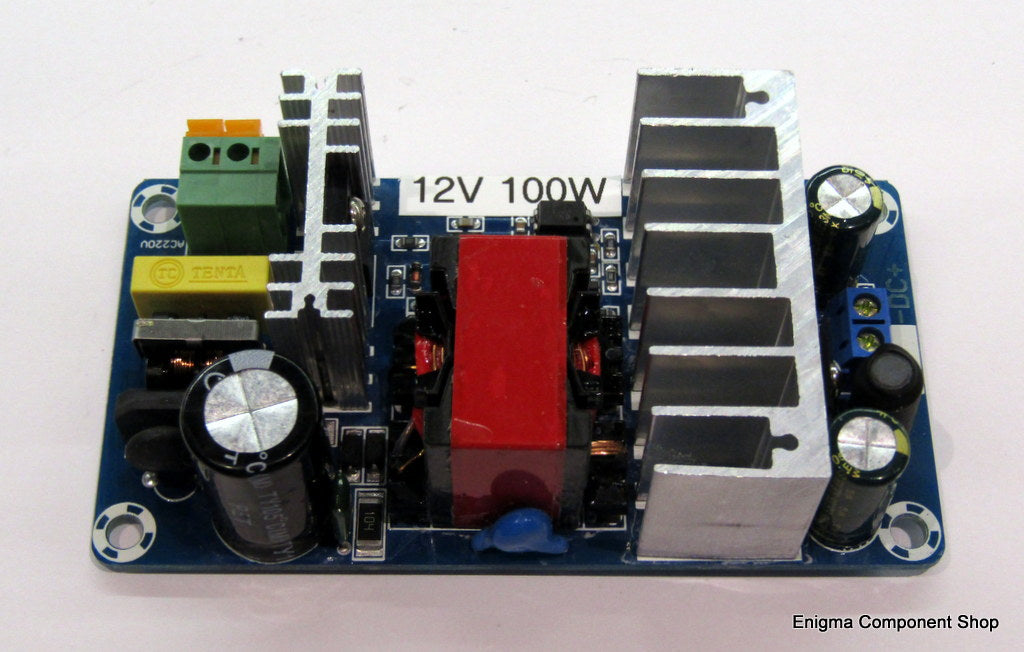

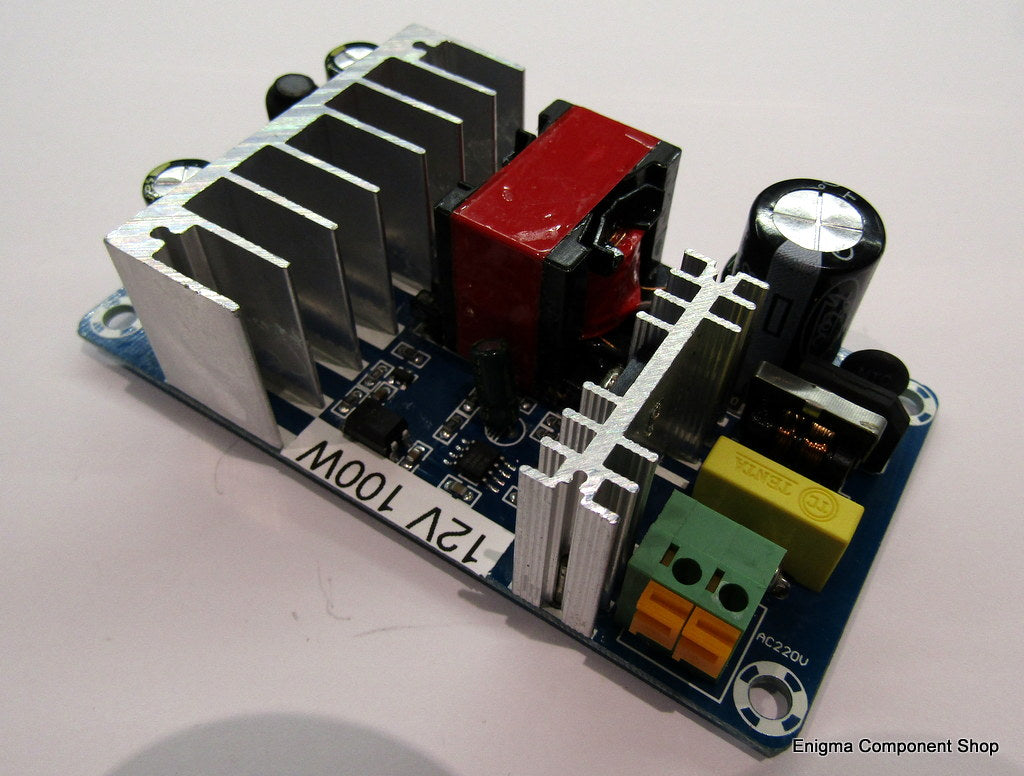

Single Output 12V 100W Switched Mode Power Supply Module

Compact switched mode power supply board for audio or radio projects. Universal AC voltage input for countries with 110-240V mains.

Perfect for compact projects requiring a 12V supply.

Specifications

Input: 110-240V, 50/60Hz

Output: 12V, 8A, 100W.

Ripple and noise: <150mV

Size: 106 x 57 x 32mm

Fixing centres 47 x 98mm (M4 holes)

Please note: This module carries very high voltages and only experienced users with knowledge of mains safety should attempt installation. In addition, a clearance of at least 6mm should be given under the board when fitting in to a case. We also recommend an insulating sheet under the board when used in metal enclosures. It is the users' responsibility for mains safety and Enigma Shop cannot be held responsible for injury as a result of improper installation of this product.
