Single Output 24V 300W Switched Mode Power Supply Module
In Stock: 2
High Quality Components
Great quaility components at great prices.
Fast Shipping
Orders dispatched daily, within 24 hours of orders placed.

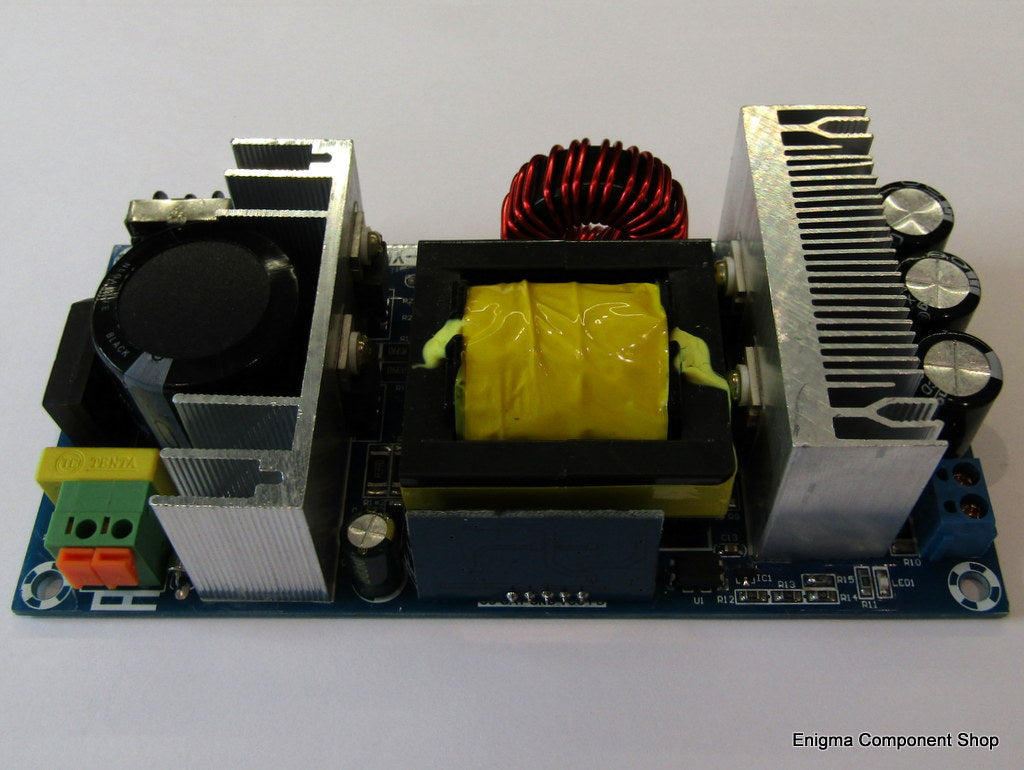

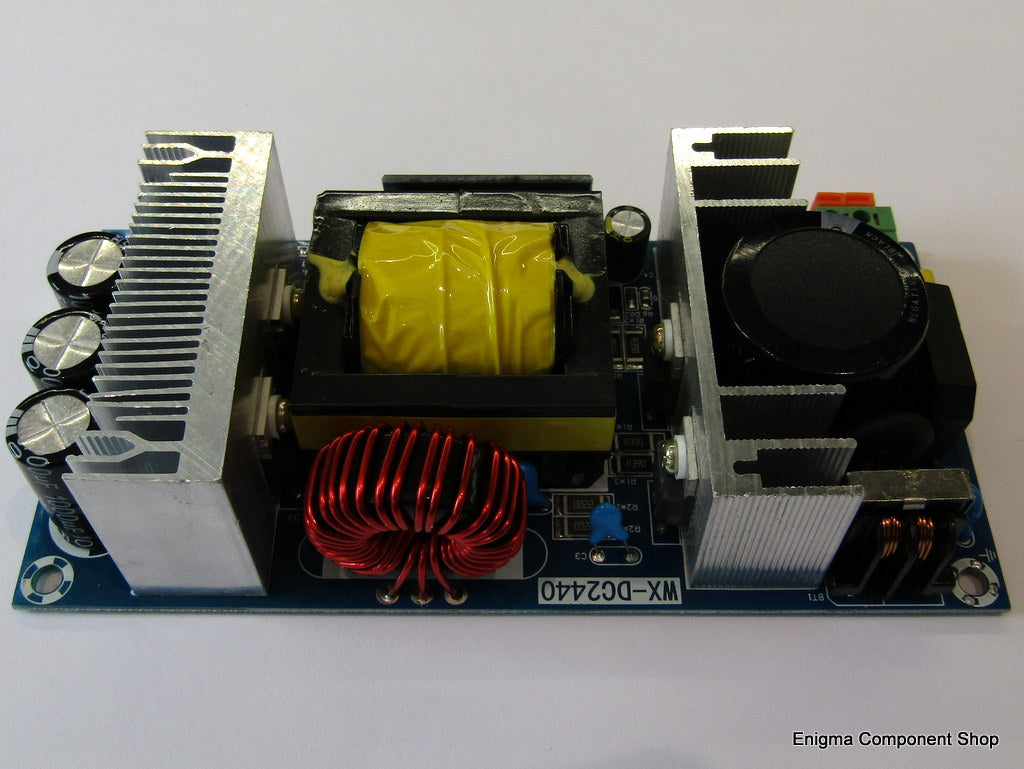

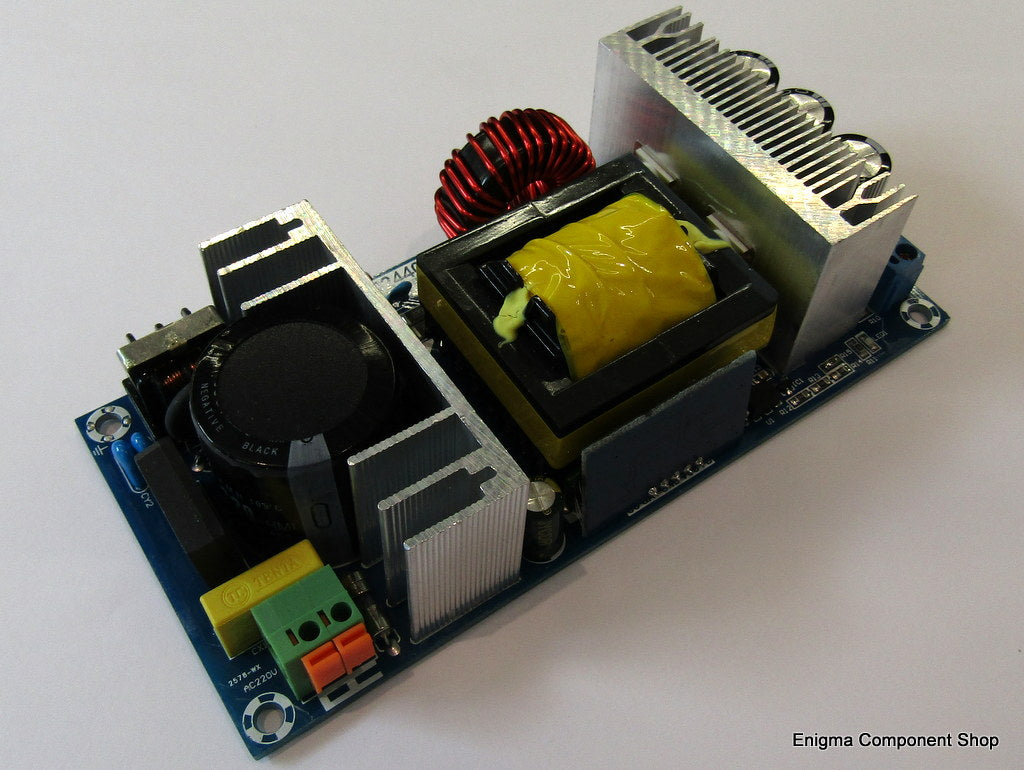

Compact switched mode power supply board for audio or radio projects. European AC voltage input for countries with 170-260V mains.
Perfect for audio or RF amplifiers requiring a 24V supply.
Specifications
Input: 170-260V, 50/60Hz
Output: 24V, 12.5A, 300W. (Overload 350W)
Ripple and noise: <250mV
Size: 146x 70 x 38mm
Fixing centres 137 x 62mm (M4 holes)
We recommend airflow or light forced-cooling across the top of the module at high loads.
Please note: This module carries very high voltages and only experienced users with knowledge of mains safety should attempt installation. In addition, a clearance of at least 6mm should be given under the board when fitting in to a case. We also recommend an insulating sheet under the board when used in metal enclosures. It is the users' responsibility for mains safety and Enigma Shop cannot be held responsible for injury as a result of improper installation of this product.
