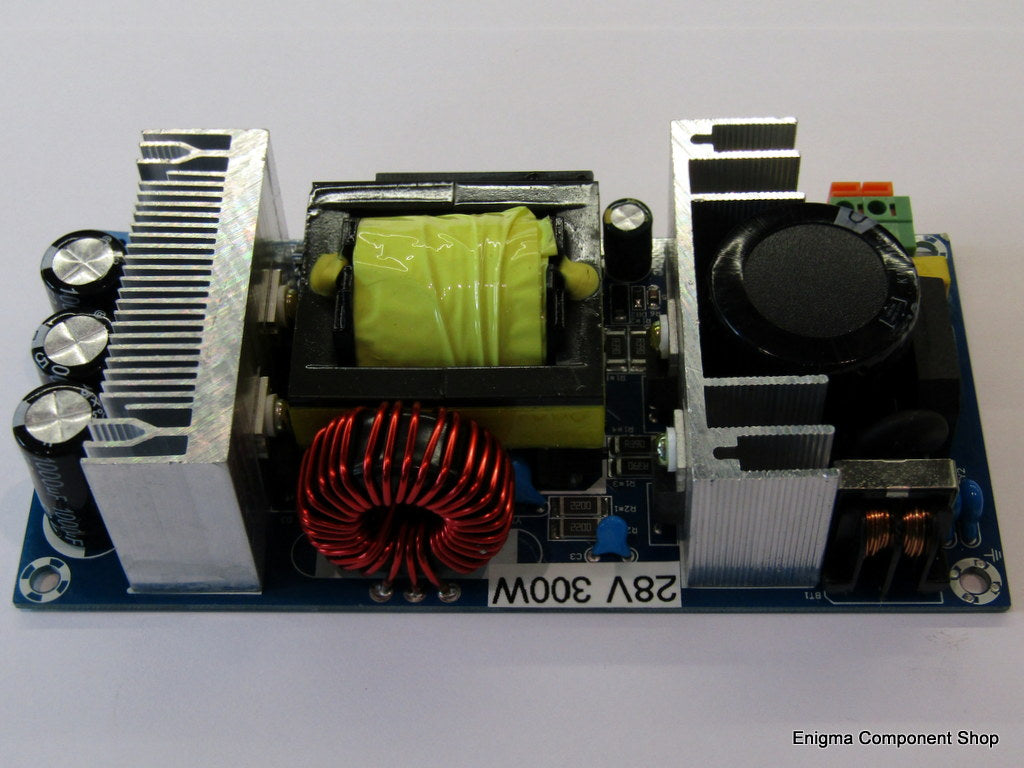

Single Output 28V 300W Switched Mode Power Supply Module

Compact switched mode power supply board for audio or radio projects. European AC voltage input for countries with 170-260V mains.

Perfect for RF amplifiers requiring a 28V supply.

Specifications

Input: 170-260V, 50/60Hz

Output: 28V (+/-3%), 10.7A, 300W. (Overload 350W)

Ripple and noise: <250mV

Size: 146x 70 x 38mm

Fixing centres 137 x 62mm (M4 holes)

We recommend airflow or light forced-cooling across the top of the module at high loads.

Please note: This module carries very high voltages and only experienced users with knowledge of mains safety should attempt installation. In addition, a clearance of at least 6mm should be given under the board when fitting in to a case. We also recommend an insulating sheet under the board when used in metal enclosures. It is the users' responsibility for mains safety and Enigma Shop cannot be held responsible for injury as a result of improper installation of this product.
