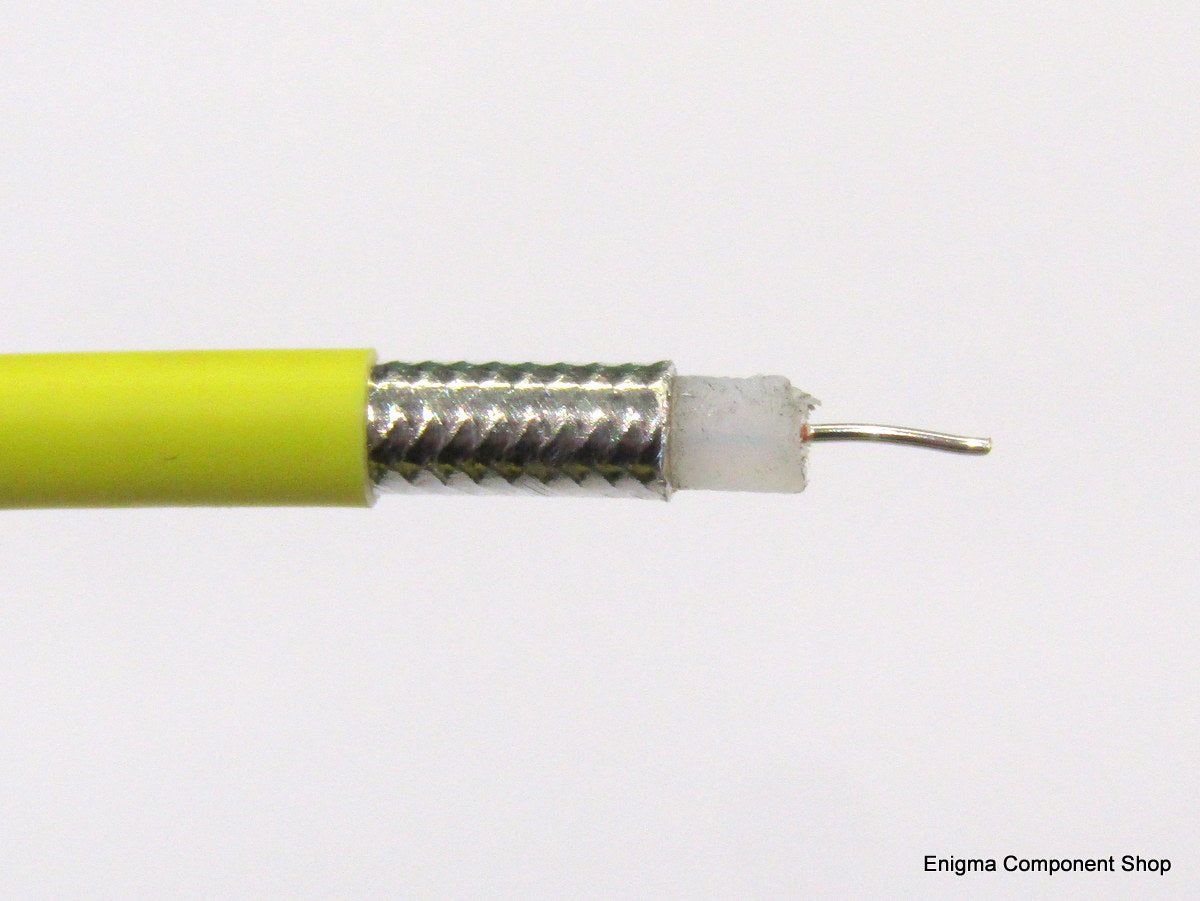

SM141 Hand Formable 75 Ohm Coaxial Cable

£3.99 GBP (excl. VAT)
 per
Shipping calculated at checkout.

In Stock: 50

High Quality Components
Great quaility components at great prices.

Fast Shipping
Orders dispatched daily, within 24 hours of orders placed.

Product description

Good quality 75Ω high powered coaxial cable.

High temperature PTFE dielectric and FEP sheath.

Technical Specifications

  • Impedance - 75Ω ±2Ω
  • Overall diameter - 4.15mm blue FEP sheath, 3.52mm tin plated copper braid
  • Internal diameter - 3.0mm PTFE dielectric, 0.53mm silver plated copper centre conductor
  • Attenuation /m - 200MHz 0.195dB, 0.5GHz =0.27dB, 1GHz =0.44dB, 5GHz =1.0dB
  • Power handling - 200MHz = 910W, 0.5GHz =600W, 1GHz =400W,  5GHz= 190W
  • Velocity of propagation - 71%
  • Capacitance - 64pF/m
  • Min bending radius - 8mm (single), 40mm (repeated)
  • Delay - 4.7ns/m
  • Max working voltage - 1.9KV
  • Working temperature  - minus 55°C to 200°C

Sold by the metre.
