  • Manufacturer: OEM

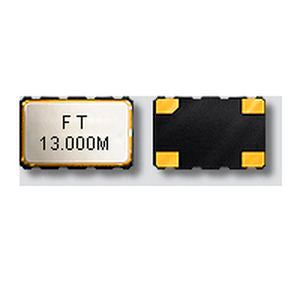

SMT VCTCXO Oscillator 13MHz 5V 5 x 3.2mm

£1.49 GBP (excl. VAT)
Shipping calculated at checkout.

In Stock: 440

High Quality Components
Great quaility components at great prices.

Fast Shipping
Orders dispatched daily, within 24 hours of orders placed.


Product description

Surface mount crystal oscillator module.

Temperature compensated 13.000MHz, 1.75V p-p sine wave output with 5V supply.

Stability 15ppm, and the final output frequency can be trimmed by applying a small voltage (0-1.5V) to pin 1.

Dimensions are a tiny 5 x 3.2mm.

Perfect for those homebrew TX or RX projects.

Standard format pin configuration, as follows:

 1 - NC or frequency trim

 2 - Gnd

 3 - Output

 4 - 5V supply

Please see the example data sheet for pin layout and numbering.

Sold singly on a cut tape.
