Toko 10mm Quadrature Coil for CA3189

£1.20 GBP (excl. VAT)
 per
Shipping calculated at checkout.

In Stock: 64

High Quality Components
Great quaility components at great prices.

Fast Shipping
Orders dispatched daily, within 24 hours of orders placed.

Downloads

Product description

Toko 10mm coil for quadrature detection at 10.7MHz on the  CA3089 / CA3189 / LA1235 FM ICs.

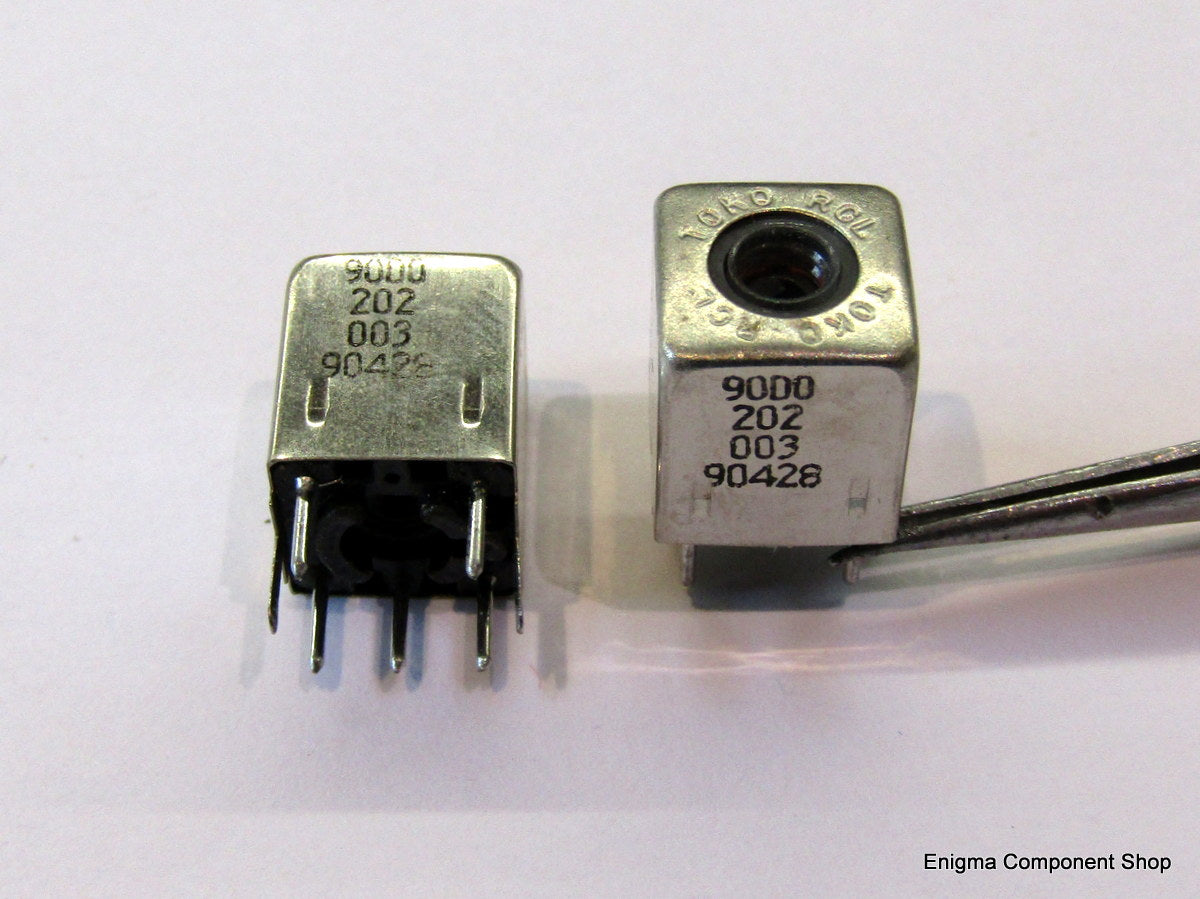

  • Has a single 1.8µH inductor between pins 1 & 4 (top left & bottom right pins in the photo)
  • Will resonate at 10.7MHz with 82pF capacitor across the coil
  • A 3.9K resistor is recommended for damping the tuned circuit
  • Pins 2, 3 & 6 are unconnected
  • Circuit details can be found on page 3 of the CA3189E datasheet
