Toko 10mm Quadrature Coil for TDA1576
In Stock: 128
High Quality Components
Great quaility components at great prices.
Orders dispatched daily, within 24 hours of orders placed.

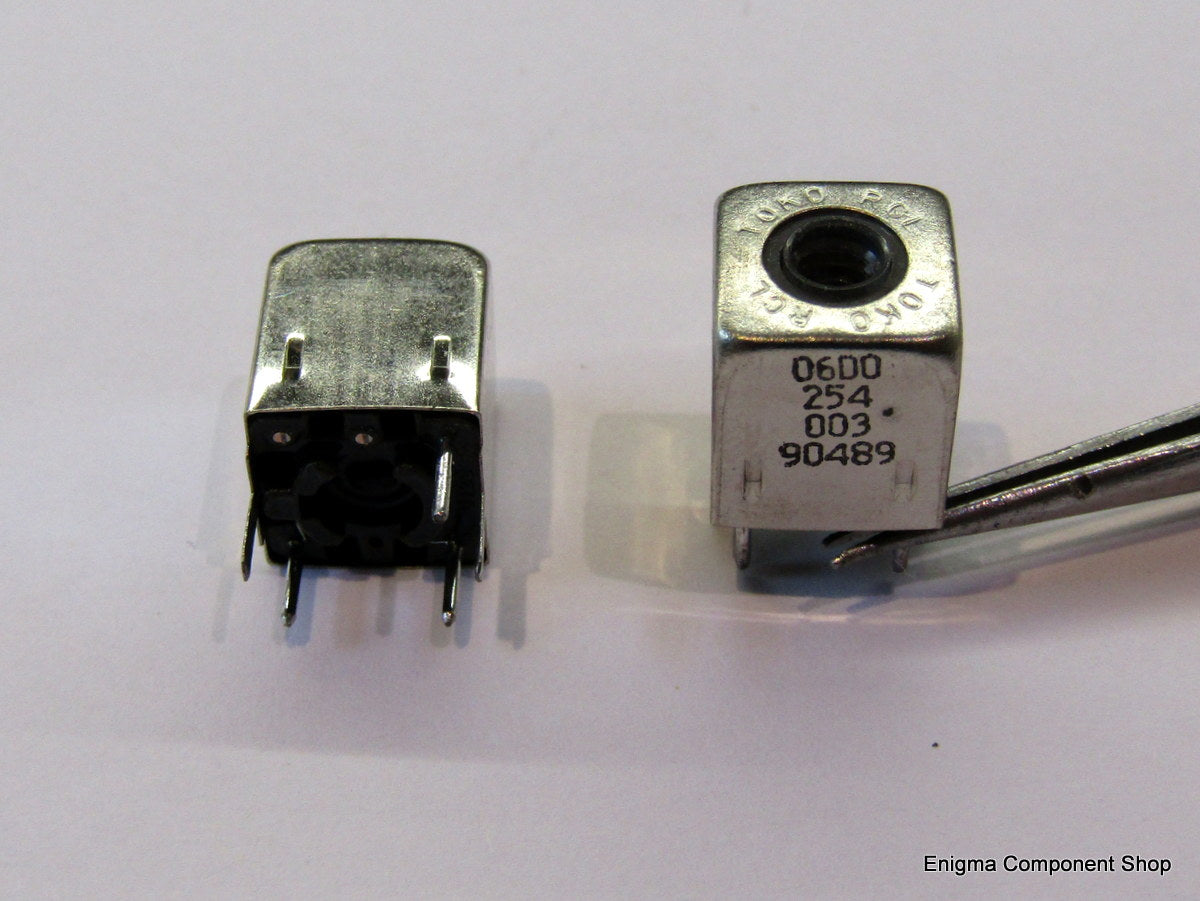

Toko 10mm coil for quadrature detection at 10.7MHz on the TDA1576 FM IC.
- Has a single 850nH inductor between pins 4 & 6 (the bottom pins in the photo)
- Will resonate at 10.7MHz with 270-330pF capacitor across the coil
- A 470R resistor is recommended for damping the tuned circuit
- Pins 1 & 2 are not connected and have been cut. Pin 3 is left in place for orientation
- Circuit details can be found on page 3 of the TDA1576 datasheet
