  • Manufacturer: Enigma Broadcast

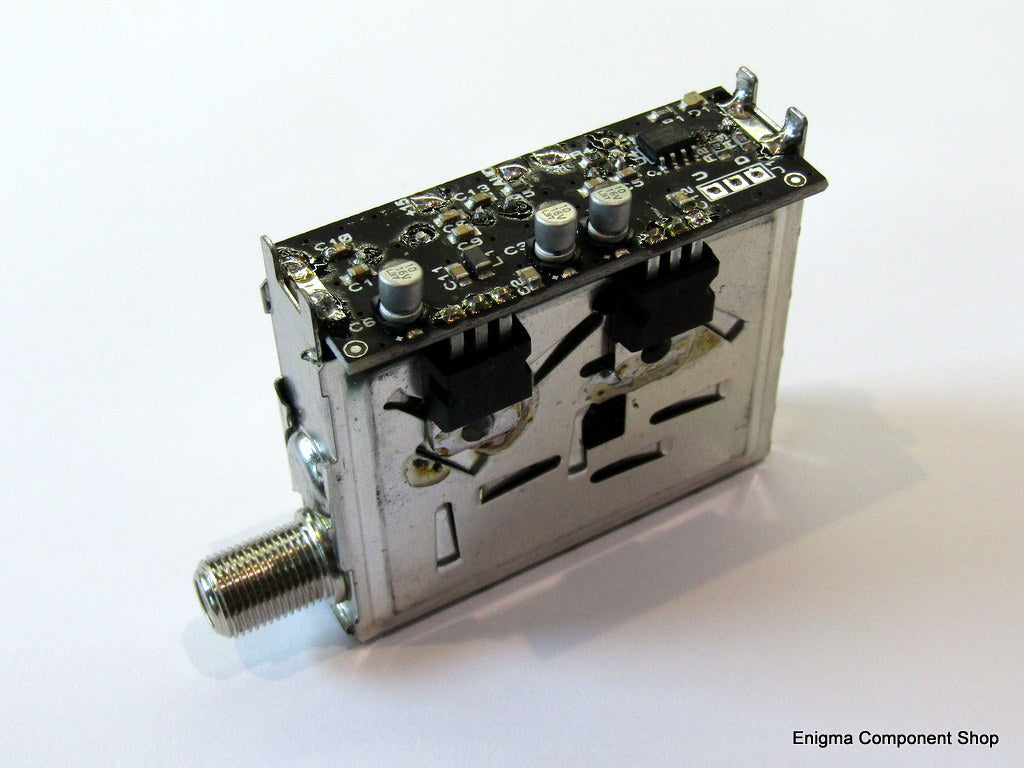

Tracking Microwave Receiver Kit - Module

£19.99 GBP (excl. VAT)
 per
Shipping calculated at checkout.

In Stock: 9

High Quality Components
Great quaility components at great prices.

Fast Shipping
Orders dispatched daily, within 24 hours of orders placed.

Downloads

Product description

The Enigma Broadcast tracking satellite tuner module can be used from 850-1750MHz as a standalone receiver for the 33cm amateur band or from 10.6-11.5GHz with a 9.75GHz universal LNB connected to the input.

The tuner is microprocessor controlled and can be used as a fixed frequency receiver or switched to tracking mode where it automatically track drifting sources such as Gunnplexers as they move over time.

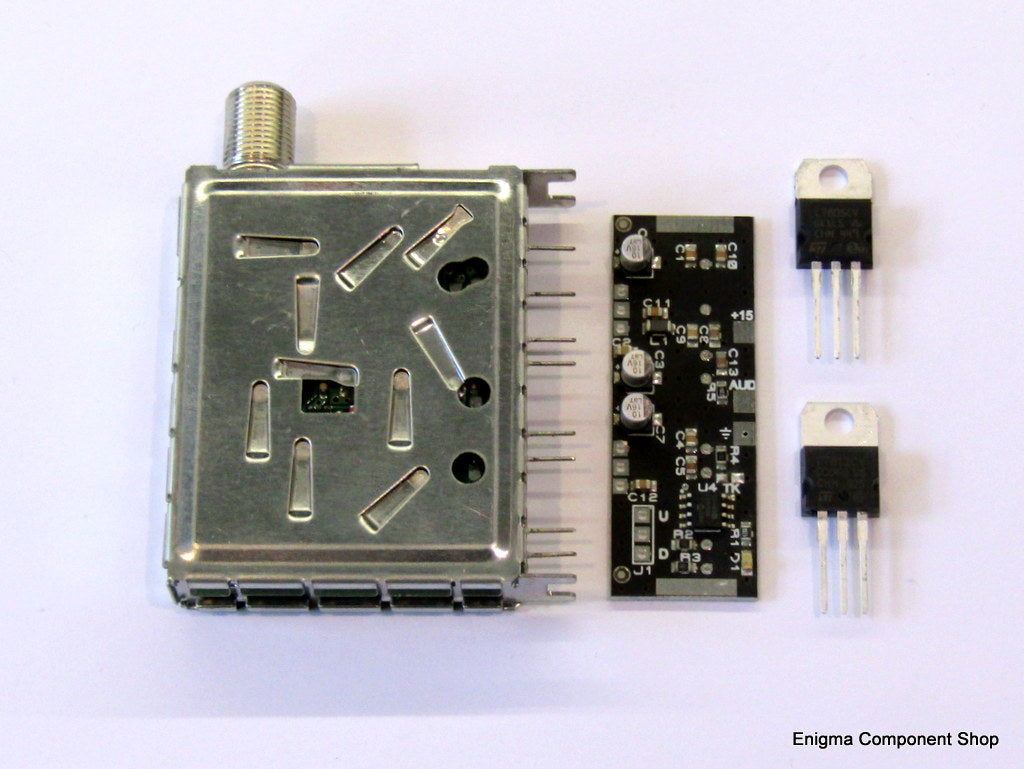

Available in kit form or as ready-bit module.  Supplied with full instructions.

Specifications

  • Power supply: 14-16V DC, 0.5A (250mA without LNB).
  • LNB Output: 12V DC.
  • Input frequency: 850-1750MHz, tunable in 1MHz steps.
  • Baseband output; 250mV RMS
  • Sensitivity: -85dBm (reduced -80dBm sensitivity for tracking to work effectively).
  • Tracking function: total 25MHz capture range (+/-12.5MHz from selected input frequency).
  • Dimensions: 70mm (L) x 54mm (H) x 19mm (W).
